DB Pro Amplifier Kit w/Yagi, +65dB 3G building, 75ohm- 841263
Wilson 801263 DB Pro Dual-Band Kit offers a huge +65dB gain and comes with a powerful Yagi uni-directional outdoor antenna, is designed for homes, offices, fire stations, command posts, and buildings white multi-room coverage requirement. Paired with Wilson's external and internal antennas, the DB Pro dual band amplifier can cover homes and buildings with a 5,000 square feet area, depending on outside signal and other factors. This high performance amplifier is remarkably easy to set up, and even uses standard RG-6 coax, already pre-wired in many homes and offices. This is a 75 ohm system.
The DB Pro features separate Adjustable Gain knobs for each band giving the user greater flexibility with signal distribution and inside antenna placement. The amplifier wirelessly supports multiple cell-phone and data-card connections simultaneously, and operates in Dual-Band - providing coverage for all carriers that use CDMA, TDMA, GSM and 3G (Nextel/iDen and 4G are not supported).
Application/Usage:
- In-Buidling signal booster kit can be used in homes, offices, command posts, fire stations and other buildings where enhanced coverage in multiple rooms is desired.
- Supports all carriers that transmit at 824-894 and 1850-1990 MHz frequency bands only and works on all generations of CDMA, TDMA, GSM, and 3G
- Works with 75 Ohm antennas and accessories
- Does not support Nextel/iDen, Verizon 4G LTE, and AT&T 4G LTE/AWS
- Contact us before you purchase this item if you are unsure

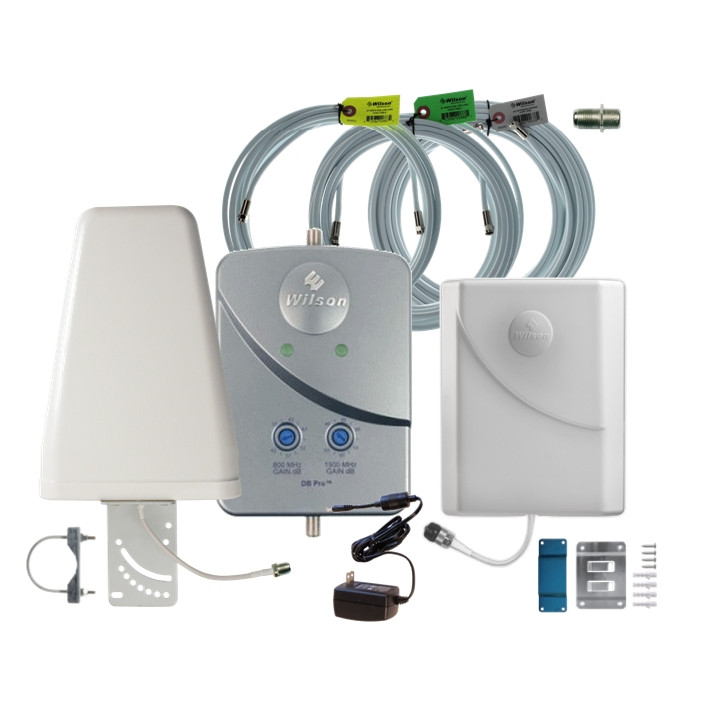

- Wilson 801262 DB Pro Amplifier Dual Band (850/1900 MHz)
- Wilson 304475 75 Ohm outside Yagi Directional Antenna (click here for technical specifications)
- Wilson 301155 Wall Mount inside Panel Antenna (click here for technical specifications)
- Wilson 950620 20-foot White RG-6 Coax Cable
- Wilson 950630 30-foot White RG-6 Coax Cable
- Wilson 950650 50-foot White RG-6 Coax Cable
- Wilson 971129 Connector:F-Female to F-Female
Product Features:
- Supports multiple cell phones and data cards wirelessly at the same time
- Adjustable gain to simplify installation
- Greatly reduces dropped calls
- Extends signal range
- Increases data rates
- Wirelessly connects to devices
- Supports multiple devices simultaneously
- Oscillation (interference) detection
- Automatic shutdown with auto reset
- Overload protection circuit
- Protects cell towers from being overloaded
- Amplifies signal both to and from cell towers
- Maximum gain within cellular standards
- Extends battery life
- Uses standard RG6 (75 Ohm) coax
- Maximum 2500 milliwatts output power
- Building Kit for poor outside signal
- Includes both Antennas, Cables, Connector
- FCC and IC approved
|
Technical Specifications |
|
| Part No | 801262 (amplifier included in kit) |
| Frequency | 824-894 MHz / 1850-1990 MHz |
| Gain | 62 dB / 65 dB |
| Max Uplink Power | 1200 mw / 1114 mw |
| Max Downlink Power | 26 dBm / 25 dBm |
| Noise Figure | 3.5 dB Nominal |
| Flatness | ±5 dB |
| Power Requirements | 120-240 V AC, 50-60 Hz, 8 W |
| Connectors | F-Female |
| Dimensions | 6.2 x 4.2 x 1.5 inches / 15.7 x 10.7 x 3.8 cm |
| Weight | 0.64 lbs / 0.29 kg |
| Documentation | Installation Guide |
First, mount the outdoor antenna vertically on the roof or on other high and unobstructed place. The 10-inch pole mounting assembly is recommended for exterior wall mounting to move the antenna up and away from the wall structure. Both Omni (omni-directional) and Yagi (uni-directional) antennas come with mounting hardware to easily attach onto standard 2-inch antenna poles. Yagi antennas should be positioned to face your nearby cellular tower while Omni antennas do not. To find the direction of your nearby tower visit our Help Me Decide pages, contact your cellular provider, or use your phone in test-mode as a guide. Outdoor antennas should be installed in such a way that no major structure or object stands between the antenna and the tower (clear line of sight is preferable).
Second, install the amplifier near a wall power outlet so the 6-foot power supply cable can reach it. Always use a quality power surge protector to safeguard against electricity spikes. Amplifiers require occasional monitoring and adjustments so accessible positions are recommended.
Next, install your indoor antenna on wall or ceiling in a way to maximize directional coverage in front of it. Most building kits come with our powerful panel antennas which is directional and has a strong frontal preference but they will also cover sides well, allowing it to broadcast toward the area you want to cover. The external antenna connects to the “outside antenna” connector on the amplifier, and the internal antenna connects to the “inside antenna” connector.
Power on the amplifier and wait for the green LEDs to light up.
Product Videos
-
Wilson Signal ...Animation of how Wilson Electronics Signal Boosters work to ma... -
DB Pro Cell Ph...The Wilson Electronics DB Pro cell phone signal booster will b...
-
$9.95
-
$218.84$139.95
-
$316.74$229.95
-
$108.94$76.95
-
$310.74$239.95
-
$94.95$89.95
-
$24.95
-
$34.95
-
$17.95
Showing reviews 1-10 of 19 | Next
-
Wilson amp
Posted by Vaughn Skinner, La Grande, Oregon on 7th May 2013
I have a metal sided house in a marginal location at the foot of a mountain. This antenna/amp has really helped our signal. Prior we would have dropped calls and 1-2 bars. Now we consistently have 4-5 bars within the mouse. Using the meter within the iphone (as described on wilsons website) we went from -101 to -72 signal strength.
I found that the data connection went from non-existant to 0.83Mbs down and 0.76 up.
-
wilson 841263 +db pro
Posted by Alan Wesloh Washington Missouri on 21st Apr 2013
Very happy! Same as Johns review, we have a metal roof, live in a very low area and have never received cell phone signal or even TV reception. No antenna has ever worked. By golly this sure got us 3 bars. It took a little bit but well worth it. Thank you for the wonderful customer service also.
-
Not too bad for the cost
Posted by Darren M on 14th Mar 2013
We purchased the •Wilson 841263 DB Pro™ +65dB Home Signal Booster Kit w/Yagi Antenna because cell phone service in our home was intermitent at best. The product increased the signal in most places in our home but finding the best direction to get the signal was guess work. I had to get up on the roof to adjust the direction of the antenna a number of times. With the cost of the unit, plus $100.00 in shipping costs and then taxes to bring it to Canada from the U.S. I think Wilson could have included the signal tester that connects from the antenna to a cellular device so you can get the best signal while your on the roof and not have to continuously get up on the roof.
-
yea I can talk on my cell phone
Posted by kkay on 14th Feb 2013
I purchased a DB Pro 841-263 . I can talk on my phone for the first time in 12 years. I live on the edge of no where and with AT&t sevice in a metal barn. I bought this booster from the very knowledgeable lady that answered the phone and it took 2 days to get here...30 minutes to install and my life has changed..no more sitting outside to talk on my cell phone!!
-
What a difference
Posted by Bob T on 10th Feb 2013
I'm currently working in the oil field of South Texas. We have Verizon as our primary cell phone carrier and were told we should get ATT for better coverage.On Verizon we would get maybe one bar and dropped calls. Went to WM to buy a cheap ATT phone and had only one bar. Put up our Wilson DB pro with directional antenna and we have 5 bars. We are using our Wilson in our motor home. Can't wait until we go home and we have poor reception there as well. Highly recommend this unit
-
Fantastic company and product
Posted by Bryan Santucci, Marshall, Va on 2nd Feb 2013
Ordered the DB Pro 65 with the yagi directional antenna. H some problems lining up the directional so I called the tech support guys in Utah. They suggested I go with the Omni directional antenna so they shipped me one at no extra cost to me. Received the new antenna, installed it and it works well beyond my expectations. Great product.
-
cell phone reception that is beyond comprehension
Posted by John McDougall on 28th Jan 2013
we live in the woods in a log cabin with a metal roof. add to that, we are in a low area. we have never been able to use our cell phones inside.
I just installed the system this afternoon, plugged it in, and walla !! we have 4 bars
everywhere.
thank you for a FIVE STAR product
-
No Service to 4+ bars
Posted by Rick M on 24th Jan 2013
Bought a place in the country, 15 miles from nearest cell phone tower. Built 40 X 60 ft metal building. Outside of building had to walk around in 10 acre field to find one bar on I-Phone 4S. Inside building "NO SERVICE." Installed Yagi antenna on 20 ft pole and pointed it toward the tower. Installed booster and inside antenna. Turned it on and once the green lights stopped flashing, I had 4-5 bars everywhere in the building. Even in a metal travel trailer parked inside the metal building. Thanks Wilson, life is great in the country now!!!
-
excellent
Posted by Eric White on 23rd Jan 2013
This product works very well. I went from no signal at all to five bars through out my home. Its will worth what I paid for it.
-
From NO service to service in the house!!
Posted by Arnie on 17th Jan 2013
Very poor service here in NE Wyoming. Desktop model did not work ( Wilson service tech helped steer me in the right direction ) but the 801262 DB Pro darn sure does. What a blessing --- hate those huge co-ax cables but LOVE the fact we now have service IN the house. Before we had to go outside and got VERY spotty service. Thanks Wilson
