Stamped Yagi Antenna for 1700/1900MHz, 50ohm - 301124

Product subtitle:

Specialized 1700/1900MHz uni-directional outdoor antenna mounted outside to communicate with the cellular tower

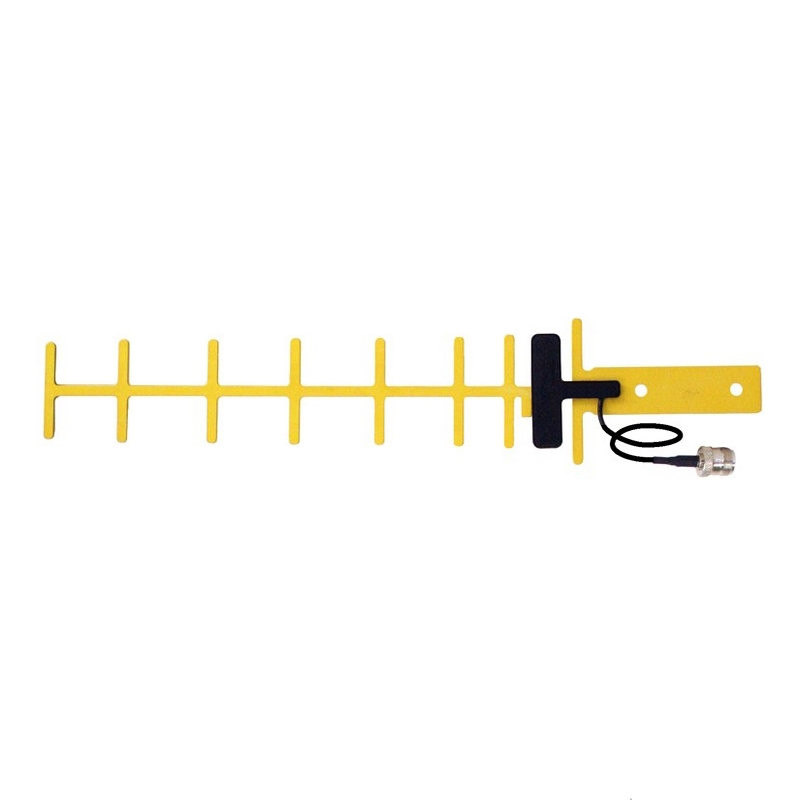

Wilson 301124 Stamped Yagi Antenna Aluminum Single Band 1900 Mhz

SKU:

WA301124

Rating:

Availability:

In stock. Ships in 1-2 business days. Expedited shipping available.

Retail Price:

~~$79.95~~

Your Price:

$45.88 (You save $34.07)

The Wilson's 301124 Yagi antenna is a directional antenna that improves signal transmission between your Wilson amplifier and your nearest cellular signal tower and features up to 14 dB of gain. It is designed for fixed installations and must be pointed to the nearest cellular signal tower.NOTE: Yagi antennas will only work in straight land and line of sight situations. They will not work in mountainous areas, since they have to be pointed towards the cell tower on a straight line without anything else in the middle.

Application/Usage:

Designed to be installed outside of a building, pointing towards the nearest cellular signal tower

Compatibility:

Works with 50 Ohm amplifiers and accessories
Supports all carriers transmitting at the following frequency bands:

700-800 MHz, -18.7 dBi Gain
824-894 MHz, -23.4 dBi Gain
880-960 MHz, -21.6 dBi Gain
1710-1880 MHz, 14 dBi Gain
1850-1990 MHz, 14 dBi Gain
2110-2170 MHz, -10.6 dBi Gain

Package Includes:

Antenna
Mounting hardware

Product Features:

Designed for fixed installations
Directional antenna
Mounting hardware included

Technical Specifications
Frequency	1700/1900 MHz
700-800 MHz Gain	−18.7 dBi
824-894 MHz Gain	−23.4 dBi
880-960 MHz Gain	−21.6 dBi
1710-1880 MHz Gain	14 dBi
1850-1990 MHz Gain	14 dBi
2110-2170 MHz Gain	−10.6 dBi
Impedance	50 Ohms
Max Power	25 Watts
Radiation	Directional
Polarization	Vertical
Number of Elements	9
Connector	N-Female
Material	Aluminum
Length	16.8 inches / 43 cm (with mount)
Weight	3.0 oz / 0.086 kg (with mount)
Mount	Mounts on pipe with 0.5 inch to 1.5 inch diameter
Documentation	Installation Guide

Mount the antenna in the vertical position in an elevated and unobstructed place such as roof or high outside wall, away from other antennas, glass windows, and metal objects. Antenna should be as high and unobstructed as possible. Locating your nearby cellular tower used by your carrier and moving/directing your antenna towards it is very important for optimal installation of any outdoor antennas in a line-of-sight with the tower. Follow antenna-specific installations instructions for details.

Always choose a wide-band or multi-band antenna if unsure of your local carrier voice or data frequencies. The single-band and narrow-band antennas are meant for specialized installations targeting select cellular signal frequencies.
