Sleek 4G-A Amplifier Only, +26dB on AT&T 4G - 815325
Product subtitle:
Tri-band cradle amplifier for AT&T 4G LTE & all 3G/Edge North American networks, single-user
SKU:
WA815325
Rating:
Availability:
In stock. Ships in 1-2 business days. Expedited shipping available at checkout.
Price:
$164.95
Cradle amplifier only. This package contains the Amplifier only and is designed for users who wish to pick their own Antennas and Mounts from our large selection. This device promises to greatly improve cellular performance in your vehicle and works with all devices on all conventional 2G and 3G networks, and the AT&T LTE 4G network.
It is easy to install the Wilson Sleek without tools. Check the specifications sheet and product video for details.
Perfect for WiFi Hotspots
This new mobile signal booster from Wilson is designed to keep your cellular device connected even in weak signal areas, minimizing occurence of dropped calls and improving data transfer rates. The cradle antenna requires direct physical contact with the back of your cell phone. With dramatic improvements to both voice and data communication, the Wilson Sleek 4G-A is perfect for phones and wireless WiFi hotspots. It provides Gain of up to 26dB and delivers more than 20 times the power of a typical cell phone. NOTE: this 4G signal booster does not work with the Nextel/iDEN network and other non AT&T 4G LTE networks.
Application/Usage:
- Designed for mobile usage and works with all devices on all conventional 2G and 3G networks (except Nextel/iDEN) and the AT&T LTE 4G network. Can also be used at home when you purchase the Wilson 859970 Home Accessory Kit.
- For a simple way to use this signal booster at home check out the custom Wilson 815326-H Sleek 4G-A Cradle w/Home Accessory Kit.
- Pair this booster with any mobile antenna.

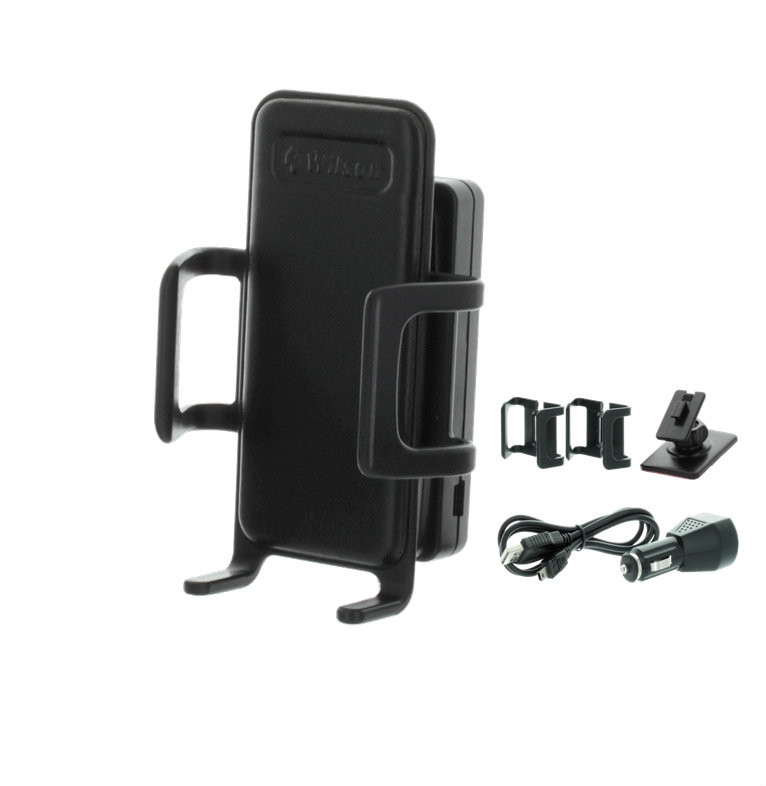

- Wilson 815325 Sleek 4G-A Cradle Mobile Signal Booster (cell phone or 4G MiFi not included)
- USB car cigarette lighter power adapter
- Adhesive dashboard mount
- Two sets of replacement cradle arms
- Simple DIY installation
- Greatly reduces dropped calls
- Boost AT&T® 700 MHz LTE as well as 3G & 2G cellular signals on 800 MHz & 1900 MHz
- Boosts both voice and data communications
- Provides a strong, reliable signal even in weak signal areas
- Faster, cleaner 3G & 4G data transfers
- Delivers more than 20 times the power of your cell phone alone
- Improves battery life
- Additional Antennas and Mounts sold separately
|
Technical Specifications |
|
| Frequency | 776−757 MHz / 776-787 MHz / 824-894 MHz / 1850-1990 MHz |
| Gain | 20 dB / 20 dB / 20 dB / 26 dB |
| Max Uplink Power | 316 mw / 316 mw / 1,240 mw / 1,800 mw |
| Noise Figure | 5.0 dB nominal / 5.0 dB nominal / 3.0 dB nominal / 3.0 dB nominal |
| Flatness | ±4 dB |
| Power Requirements | 5V |
| Connectors | SMA Female |
| Dimensions | 2.25 x 4.25 x 2.5 inches (5 x 9.5 x 5.6 cm) |
| Weight | 2.5 oz (0.07 Kg) |
| Documentation | Specification Sheet |
Sleek installation is very user-friendly and shouldn’t take more than 30 minutes. Sleek amplifier systems have two separate components which need to be installed and connected: the amplifier cradle and the exterior antenna. The amplifier cradle includes both the amplifier and the interior “direct-connect” antenna in a convenient, phone-holding design.
First, install the adhesive mount in the desired vertical position of your dashboard (not on your air bag cover) and adjust the cradle arms to fit your phone. Allow 24 hours for the mount’s 3M adhesive to set before attaching the amplifier cradle to the mount. The included 5V car cigarette lighter power supply with a 3-foot USB/USB-mini cable will be used to power the amplifier. Additional 5V AC wall power supplies and 5V DC hardwire vehicle kits are available. Use the bottom mini-USB port on the cradle as the power port (so both power cable and antenna cable exit the cradle at the same angle from the bottom).
Second, install the magnet-mount exterior antenna (or optional trucker/marine antenna) in the desirable position in the center of your car roof or trunk (at least 12 inches away from other antennas and 6 inches away from windows or sunroof). The strong, rare-earth magnet will securely hold the antenna in place. The antenna cable is thin enough to feed under the door rubber seal and through the door frame.
Finally, connect the exterior antenna to the amplifier and power on the amplifier cradle. Once connected and powered, your system will boost any compatible phone/network. A green light on the side of the amplifier indicates optimal operation. A red light indicates that an automatic shutdown has taken place. This is either due to the exterior antenna and amplifier cradle being too close, or being too close to a cellular tower. The Sleek cradle systems require direct physical contact with the back of your cell phone, so you must use hands-free calling or the speakerphone on your device to benefit from the signal amplification.
The optional home/office accessory kit (included in some kits) allows for easy desktop installation and vehicle-to-building mobility. The amplifier-only option does not include an exterior antenna.
First, install the adhesive mount in the desired vertical position of your dashboard (not on your air bag cover) and adjust the cradle arms to fit your phone. Allow 24 hours for the mount’s 3M adhesive to set before attaching the amplifier cradle to the mount. The included 5V car cigarette lighter power supply with a 3-foot USB/USB-mini cable will be used to power the amplifier. Additional 5V AC wall power supplies and 5V DC hardwire vehicle kits are available. Use the bottom mini-USB port on the cradle as the power port (so both power cable and antenna cable exit the cradle at the same angle from the bottom).
Second, install the magnet-mount exterior antenna (or optional trucker/marine antenna) in the desirable position in the center of your car roof or trunk (at least 12 inches away from other antennas and 6 inches away from windows or sunroof). The strong, rare-earth magnet will securely hold the antenna in place. The antenna cable is thin enough to feed under the door rubber seal and through the door frame.
Finally, connect the exterior antenna to the amplifier and power on the amplifier cradle. Once connected and powered, your system will boost any compatible phone/network. A green light on the side of the amplifier indicates optimal operation. A red light indicates that an automatic shutdown has taken place. This is either due to the exterior antenna and amplifier cradle being too close, or being too close to a cellular tower. The Sleek cradle systems require direct physical contact with the back of your cell phone, so you must use hands-free calling or the speakerphone on your device to benefit from the signal amplification.
The optional home/office accessory kit (included in some kits) allows for easy desktop installation and vehicle-to-building mobility. The amplifier-only option does not include an exterior antenna.
-
