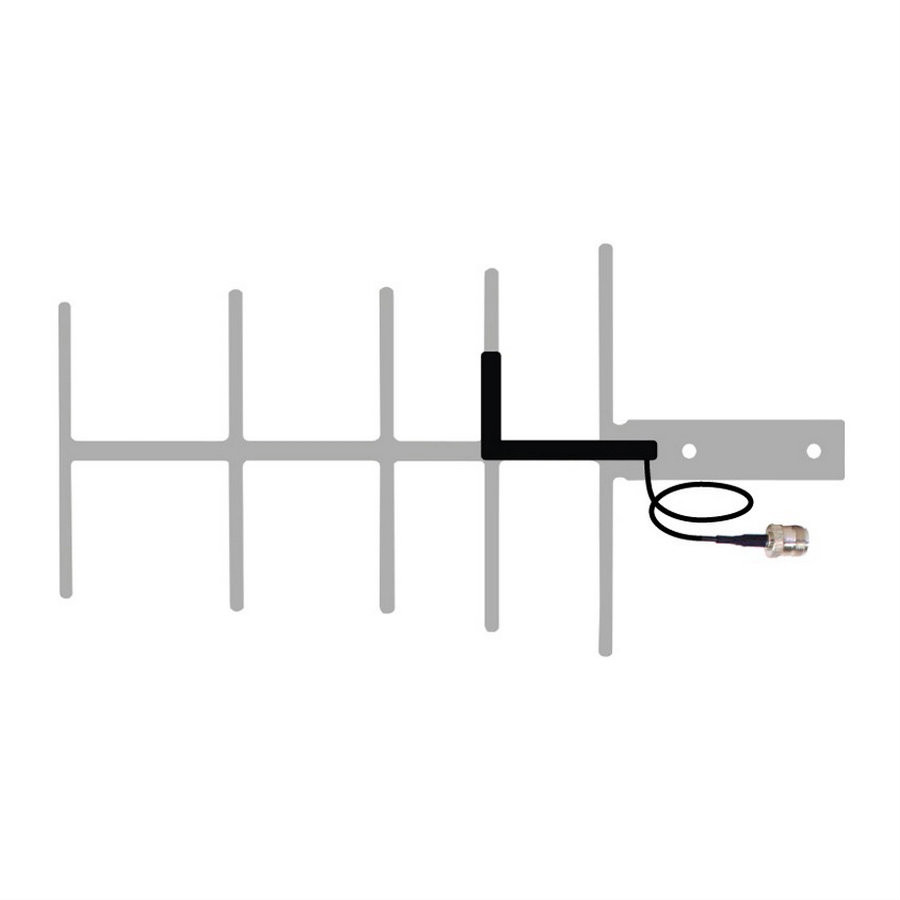

Stamped Yagi Antenna for 900MHz iDen, 50ohm - 301142

Product subtitle:

Specialized 900MHz iDen uni-directional outdoor antenna communicating with the cellular tower

product-weight:

3

White Arrow
Price Match Guarantee

THE WILSON AMPLIFIERS
TRIPLE GUARANTEE

100% Satisfaction

  • 30-day money-back guarantee.

100% Service & Support:

  • Free shipping on all items! 2 year warranty.

100% Security:

  • Google Trusted Store verified by PayPal, BBB, and Authorize.net.
SKU:
WA301142
Availability:
Discontinued Item.
Retail Price:
$79.95
Your Price:
$48.49 (You save $31.46)

This item has been discontinued.

The Wilson's 301142 Yagi outside antenna improves signal transmission between your Wilson amplifier and your nearest cellular signal tower and features up to 10 dB of gain.  The Wilson 301142 Yagi antenna is designed for fixed installations and must be pointed to the nearest cellular signal tower.

NOTE: Yagi antennas will only work in straight land and line of sight situations. They will not work in mountainous areas, since they have to be pointed towards the cell tower on a straight line without anything else in the middle.

Application/Usage:

  • Designed to be used as an outside antenna and mounted on a pipe outside of a building
Compatibility:
  •  Works with 50 Ohm amplifiers and accessories
  • Supports all carriers transmitting at the following frequency bands:
    • 700-800 MHz, -3.6 dBi Gain
    • 824-894 MHz, 3.7 dBi Gain
    • 880-960 MHz, 10.1 dBi Gain
    • 1710-1880 MHz, -12.1 dBi Gain
    • 1850-1990 MHz, -10.2 dBi Gain
    • 2110-2170 MHz, -13.4 dBi Gain
Package Includes:
  • Wilson 301142 Stamped Yagi Antenna
  • Mounting hardware

Product features:

  • For fixed installations
  • Directional antenna
  • Mounting hardware included

Technical Specifications

Frequency  800/900 MHz
700-800 MHz Gain  −3.6 dBi
824-894 MHz Gain  3.7 dBi
880-960 MHz Gain  10.1 dBi
1710-1880 MHz Gain        −12.1 dBi
1850-1990 MHz Gain  −10.2 dBi
2110-2170 MHz Gain  −13.4 dBi
Number of Elements  5
Impedance  50 ohms
Radiation  Directional
Polarization  Vertical
Connector  N-Female
Material  Aluminium
Length  14.4 inches / 37 cm (with mount)
Height  Weight 2.9 ounces / 0.081 kg (with mount)
Mount  Mounts on pipe with 0.5 inch to 1.5 inch diameter
Documentation  Installation Guide
































Mount the antenna in the vertical position in an elevated and unobstructed place such as roof or high outside wall, away from other antennas, glass windows, and metal objects. Antenna should be as high and unobstructed as possible. Locating your nearby cellular tower used by your carrier and moving/directing your antenna towards it is very important for optimal installation of any outdoor antennas in a line-of-sight with the tower. Follow antenna-specific installations instructions for details.



Always choose a wide-band or multi-band antenna if unsure of your local carrier voice or data frequencies. The single-band and narrow-band antennas are meant for specialized installations targeting select cellular signal frequencies.
