Wilson Pro 710i Kit
The Pro 710i by WilsonPro is the first 5G specific cellular amplifier for large commercial buildings. Exclusively designed to amplify Band 71, your business can get up to 100,000 sq ft of reliable low-band 5G coverage. Compatible
with 4G/LTE signals, easily pair it with an existing WilsonPro system needing 5G support, or install it as a stand-alone unit. It works with all carriers and devices using Band 71. With up to 90 dB gain and 25 dBm uplink/downlink,
it does a great job at maintaining a connection with faraway towers and delivering the best signal possible. Kit only includes the Pro 710i amplifier and power supply. To boost Band 71, compatible cellular antennas are required.
Featuring XDR technology, the Pro 710i automatically adjusts to outside signal changes to prevent overload or shut down. This ensures your business is always connected. The easy-to-use color LCD screen makes managing and monitoring
performance simple.
Who Is This For?
For people needing coverage for a commercial building up to 25,000 sq ft.
Best for: large multi-story buildings, industrial warehouses, schools, hospitals, underground parking areas, and other large office spaces.
The Wilson Pro 710i Select typically covers 5,000 to 25,000 sq ft base on our customer response.
It’s capable of covering 15,000 to 25,000 sq ft depending on strong outside signal and little interference from inside the building.
The three main causes of poor cellular reception in a building are cell tower distance, outside interference, and building material. It is especially true of building material in city & urban areas and of cell tower distance in
rural areas.
Many legacy buildings are built with high-density materials such as thick concrete, brick, and metal which block cell signals. Many modern buildings use energy-efficient materials such as radiant barrier and low-energy glass that
disrupt signals.
Any combination of these obstructions interrupt cellular service inside the building.
This is why a Wilson Pro commercial cell phone signal booster solves all three problems by reaching farther in the distance to and from the cell tower, bypassing any building material interference, and amplifying the signal inside.
Consistent delivery. Consistent service.
For majority of buildings, the Wilson Pro 710i is a very powerful & customizable choice for better 3G & 4G LTE coverage & convenience.
With adjustable uplink & downlink band controls, it allows for fine-tuning dB gain for each carrier to the finest level.
Which Carriers Does It Support?
USA
...and other major US carriers.
Canada
...and other major Canadian carriers.
Frequency
698-746 MHz
746-787 MHz
824-894 MHz
1850-1995MHz
1710-1755/2110-2155 MHz
Note:Does not support Sprint LTE Plus (formerly known as Spark), 2.5 Ghz spectrum. Other Sprint 3G & 4G LTE bands are supported.
What's included in the kit?
Each kit comes with everything you need for a complete installation.

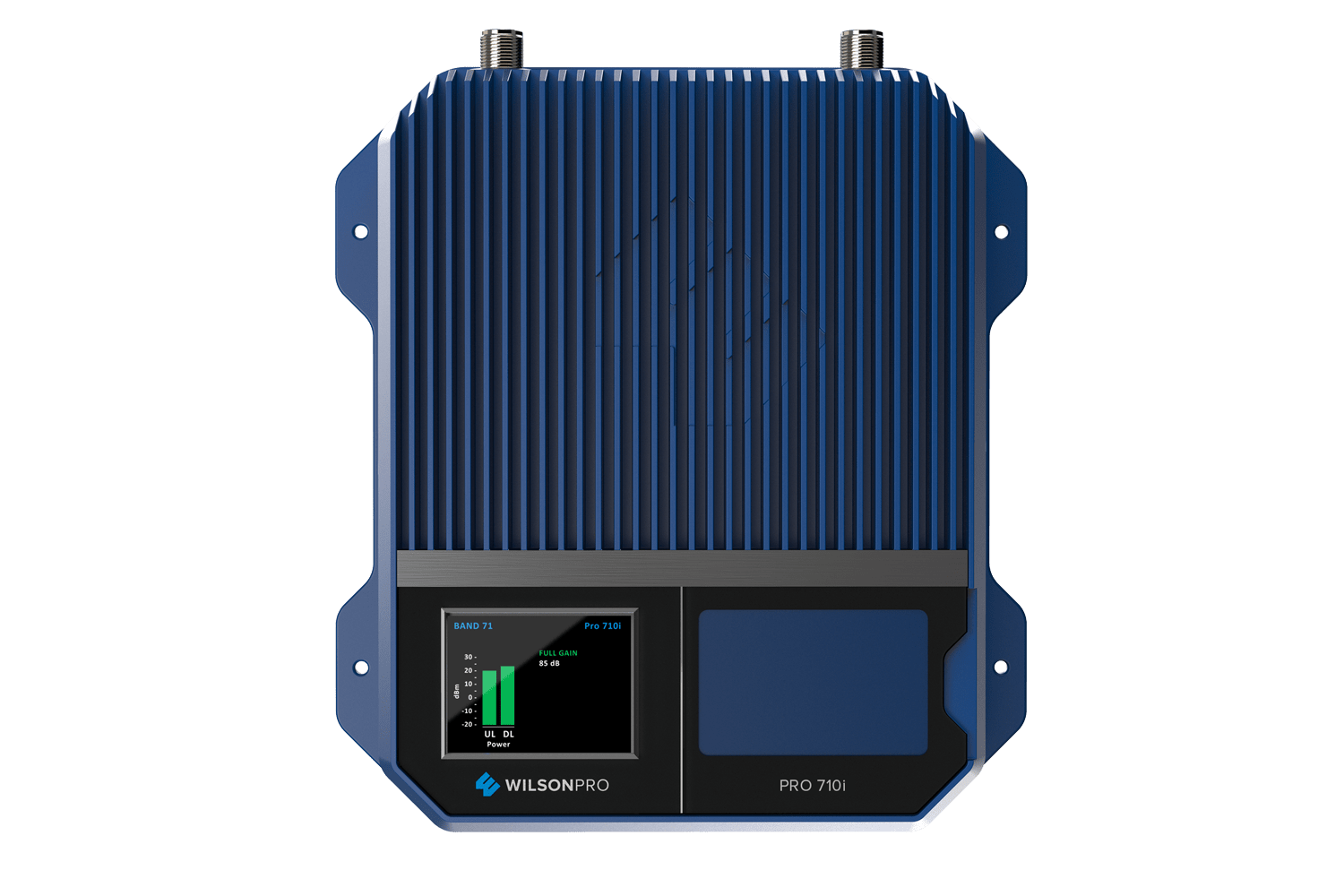

![Amplifier]()
1x WilsonPro 710i AmplifierItem # 462127
EXPECTED Coverage area
Your outside signal strength, especially the roof or fasica where you install the outside antenna, has a large impact on the amount of coverage area you get from a signal booster. It is important to know that there many unique
factors that go into determining coverage area, so actual results may vary from these estimates.
To learn more about accurately reading getting your outside signal strength, please see our guide on Finding your true cellular signal: It’s all about dB.
| If you current outside signal is: |
|
You May Receive Boosted indoor signal: |
| Current outside signal: |
|
You may get: |
 5 Bars (-40 to -70 dB) |
|
up to 40,000 sq. ft. |
 4-5 Bars (-70 to - 80 dB) |
|
up to 30,000 sq. ft. |
 3-4 Bars (-85 to -95 dB) |
|
up to 20,000 sq. ft. |
 2-3 Bars (-95 to -105 dB) |
|
up to 15,000 sq. ft. |
 1-2 Bars (-105 to - 115 dB) |
|
up to 10,000 sq. ft. |
 No Signal (-120 dB) |
|
Most likely no signal to boost. |
Product Specifications
The Wilson Enterprise 710i cellular signal booster is a simple, effective solution to maintain continuous communication for all cellular-enabled devices – smartphones, tablets, etc - in your home or workspace.
| FREQUENCY |
698-716 MHz; 729-746 MHz;
777-787 MHz; 824-894MHz;
1850-1995MHz; 1710-1755/2110-2155 MHz
|
| MAX GAIN |
70 decibels (dB) |
| CONNECTORS |
N-Connector 50 Ohm |
| POWER |
110 - 240 V AC, 50 - 60 Hz, 30 W |
| DIMENSIONS |
19 x 12 x 2.5 in |
| WEIGHT |
16.5 lbs (amplifier only) |
| FCC Notice |
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of
this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8
inches) from any person. You MUST cease operating this device immediately if requested by FCC or a licensed wireless service provider.
|
![710i Spec Sheet]()
Wilson Enterprise 710i Specifications Sheet (PDF)
Installation Instructions: Videos
![How A Commercial Booster Works]()
How A Commercial Booster Works
![How to Conduct Site Survey]()
How to Conduct Site Survey
![Commercial Signal Booster Installer Guide]()
Commercial Signal Booster Installer Guide
INSTALLATION GUIDES (PDF)
The product is easy to install. Everything is included in the kit.
If you have questions or require assistance, please call our customer and tech support at 1-800-887-1961 or email at Pro@WilsonAmplifiers.com. We
will be happy to assist you in every step of the way.
