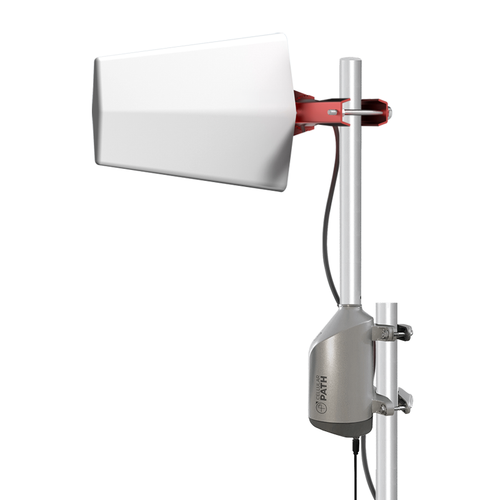

The Cellular Path Smart SOCA eliminates the challenges of installing a directional cellular antenna. It automatically scans, locates, and aims the mounted antenna towards your carrier's most optimal 5G/4G LTE signal. Precision alignment ensures the connected cellular signal booster or router operates at its highest possible performance level.
The brain of the operation is the smart controller. It creates a link with the SOCA portal through WiFi or a cellular connection with an active SIM card (optional). Accessible via the app or web interface, users can view signal analytics across all carriers, receive real-time alerts, recalibrate positioning, monitor multiple units from one place, and more. Connected systems stay reliably tuned around the clock, while integrators cut down on costly site visits with streamlined remote management.
Built to handle challenging environments, the Smart SOCA operates in temperatures from -20° F to 140° F, resists wind gusts up to 90 mph, supports antenna weights up to 100 lbs, and is IPx2 rated. Whether for professional or DIY installations, it delivers self-optimizing precision alignment in any environment.
Who is the Smart SOCA For?
The Smart SOCA is designed for system integrators, installers, and businesses that want to get the best performance out of a cellular router or signal booster. It automates accurate directional antenna setup, reduces on-site labor, and ensures peak connectivity at all times.
How Does the Smart SOCA Align the Antenna?
Through the SOCA portal, you’d initiate a signal scan with your desired carrier selected. The Smart SOCA will then perform a 360° signal scan, measuring RSSP, RSRQ, and RSSI across all available carriers. Once the scan is complete, the Smart SOCA will identify the direction of your desired carrier's best signal and automatically aim the mounted antenna.
What Makes the Smart SOCA Different from Standard Antenna Mounts?
The Smart SOCA is not your typical antenna mount. Traditional antenna mounts require manual directional antenna alignment. The Smart SOCA automatically scans and aims the mounted antenna at the most optimal cell tower. This saves time and improves accuracy.
Can the Smart SOCA be Used for Both MIMO and SISO Antennas?
Yes, it supports both MIMO and SISO directional antennas.
Does the Smart SOCA Need an Internet Connection?
Yes. The controller requires an internet connection through WiFi or cellular to communicate with the SOCA portal for remote control and monitoring. If unable to access the local WiFi network, an active SIM card is required.
How Long Does Alignment Take?
On average, the Smart SOCA completes a full scan and alignment in about 4 minutes.
Can I Monitor Multiple Smart SOCAs from One Account?
Yes. The SOCA portal allows you to add multiple devices with assigned locations for easy remote management and monitoring.
What Happens if Cellular Signal Conditions Change?
The Smart SOCA automatically detects signal changes and sends alerts via the portal, so recalibration can be performed.
