The ER800 SD-WAN 5G Router is designed to keep you connected with remote offices, end points, IoT (Internet of Things) devices, retail stores or branches. Centralized control through the cloud and SD WAN capabilities allows management of each end point from one location. Detailed security protocols keep the safety of your data no matter where in the network it is. Build a strong, safe, and fast network for every branch of your business.
Take advantage of the lightning speeds of the 5G network to reduce latency and packet loss. Dual SIM slots mean that you can use SIM cards from two different carriers. The ER800 will automatically chose the SIM with the best signal. Perfect for when you WiFI goes down and you need to stay connected. Compatible with AT&T, Verizon Wireless, and T-Mobile.

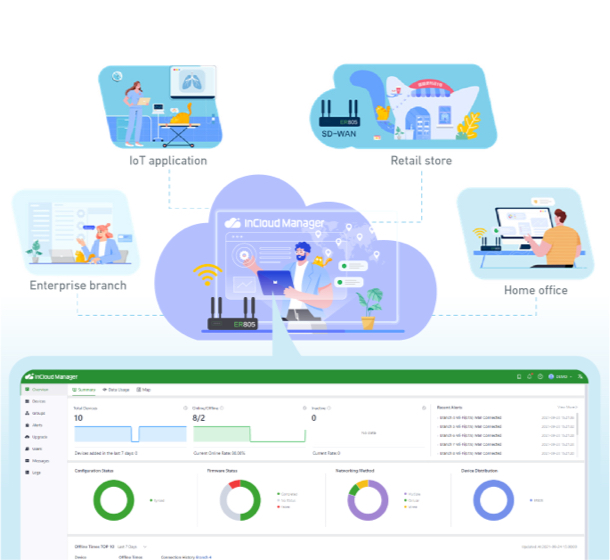

Keep tabs on and program your ER800’s from one place. Save time and money by not having to send IT staff out to manage every piece of hardware on your network. Enjoy intelligent deployment, management, insights and configuration in the cloud. Manage your whole network anytime, anywhere.
With both WiFi and 4G LTE connectivity, the ER800 will keep you online no matter what. Use the cellular signal as a backup system, or simply make use of strong, stable 4G signal in your area. Thee ER800 will automatically switch between the connections to ensure that you have steady data transmission.
SD-WAN (Software-Defined Wide Area Network) allows for faster data transfer between remote end points and a dedicated headquarters. Create a stronger and more agile network for your outside branches, retail shops or even IoT devices. Reduce data bottle necks and jitter on your network by connecting each end point directly to the cloud. The ER800 is SD WAN ready, meaning that you won't need to buy new hardware to implement the new WAN system.
The Future of WAN

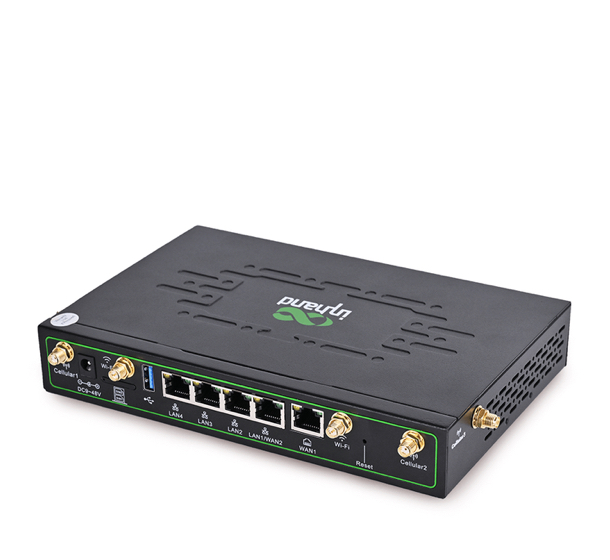

The InHand ER800 is a top of the range SD WAN enabled router designed to keep you connected to remote end points on your network. Transform your IoT enterprise or any other business that has an extensive WAN into a more efficient and cost effective system. Deploying and managing your end points has never been easier thanks to centralized cloud management. No need to send IT personnel out to program each end point’s router, simply configure it from anywhere.
Simply make use of intelligent deployment, management, insights and configuration in the cloud. IT can remotely access any ER800 from anywhere in the world to troubleshoot, monitor and configure them. This means less downtime for your business, and an increase in efficiency and productivity. Great for various IoT industries, such as retail stores, hospitals, restaurants, and others.
The ER800 automatically switches between WiFi, 4G or 5G, depending on which signal is the best. Dual SIMs allow two carrier choices for even better signal stability. Say goodbye to packet loss and jitter on your company’s network and enjoy always-on connectivity.
| Firewall throughput | 600Mbps | |
| VPN throughput | 200Mbps | |
| Recommended users | 50 | |
| Cellular | 5G, downlink 2Gbps,Sub6 (450MHz to 6GHz) 4G | |
| Ethernet port | 5*10/100/1000Mbps, Ethernet, Dual WAN/LAN VLAN | |
| USB | 1*USB 3.0 | |
| SIM | Dual SIM, Nano SIM | |
| RESET | Reset button | |
| Antenna interface | 5G cellular*4, Or 4G cellular*2, Wi-Fi*2 | |
| Frequency | Dual frequency 2.4 / 5GHz Wi-Fi | |
| Transmission bandwidth | Maximum1200Mbps | |
| Transfer Protocol | 802.11ac/a/b/g/n Wave2 MU-MIMO | |
| Maximum output power | 2.4g:17dBm 5g:17dBm | |
| Operating mode | AP /Client mode | |
| Pin | Power supply | |
| Input voltage | Input：9-48VDC | |
| Power Consumption | 12W | |
| Working Temperature | 8-20°C ～ + 70°C | |
| Storage Temperature | -40°C～ + 85°C | |
| Humidity | 95％RH at 60°C | |
| Protection Rating | IP30 | |
| Desk | Desk-top | |
| Wall | Wall mounting | |
| Electromagnetic Compatibility | II | |
| Dimensions (mm) | 210mm*140mm*35mm | |
| Features | Wall mounting, metal shell, fan-less cooling | |
| Certificates | CE, FCC, IC, PTCRB, AT&T, Verizon | |
Do I have to have a data plan to use the ER800?
No. The ER800 works with WiFi as well as cellular data. Having up to two SIM cards allows the router to pick the best signal choice to keep you always connected.
Is the ER800 simple to set up?
Yes. The ER800 features plug and play installation. Simply plug it in, turn it on, and it can be set up remotely by an IT technician.
Is the ER800 better to buy if I want to set up a SD in the future?
Yes. The ER800 is SD WAN enabled, so you wont have to spend more money on new hardware when you do set up your SD WAN.
Can I use the ER800 for IoT and branch offices?
Yes. The ER800 is perfect for connecting IoT and M2M networks, as well as keeping remote end points connected to your head office.
