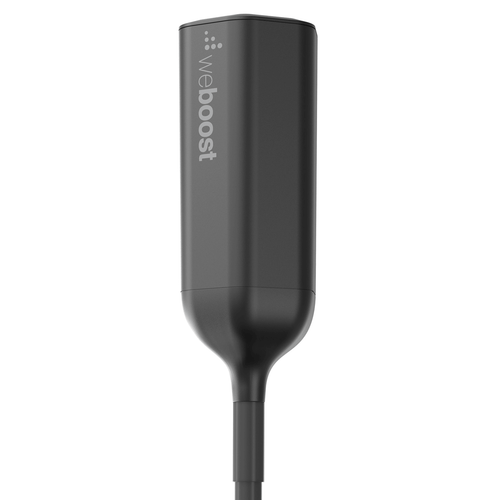

weBoost Overland Outdoor Vehicle Cellular Antenna 311248 - Close
weBoost Overland Outdoor Vehicle Cellular Antenna - 311248
$119.99
Price Match
See a lower price elsewhere?
call us for price matching!* Learn more.

weBoost Overland Outdoor Vehicle Cellular Antenna - 311248

$119.99
Price Match
See a lower price elsewhere?
call us for price matching!* Learn more.
Q&A
weBoost Overland Outdoor Vehicle Cellular Antenna 311248 - Close
  • Covers 700, 800, 1700, 1900, 2200 MHz cellular
  • High gain signal output surpasses others this size
  • Antenna can be configured into multiple lengths
  • Quick disconnect mount for off-roading
  • Up to +4.3 dB of gain
Choose Your Configuration:
Have product questions?
Call our experts for a FREE consultation
1-800-568-2723
USA-based
customer support
Up to 30 day
money-back guarantee
Up to 2 year
product warranty

Product Details

The Overland Outdoor antenna is designed for those with overland or offroad vehicles, and who wish to maintain connectivity in remote environments.

It meets current US Military and NEMA IP66 standards, ensuring it can handle the toughest outdoor conditions. Wind, rain, dust, hail, submersion, dirt, mud, hail, and more...nothing phases the Overland antenna.

It also:

  • Connects to mobile signal boosters
  • Can be configured into multiple lengths, up to 33” with multiple mast extensions
  • Is off-road rated to MIL-STD 810H for shock and vibration
  • Is assembled in the USA
  • Comes with a 2-year manufacturer’s warranty

Technical Specifications

SKU 311248
Frequency / Gain 698-806 MHz - 2.4 dB
806-960 MHz - 2.6 dB
1710-1880 MHz - 3.8 dB
1850-1990 MHz - 3.8 dB
1910-2170 MHz - 3.7 dB
2300-2700 MHz - 4.3 dB
Gain - Typical @ 2° Elevation 1.4 dB
2.4 dB
3.1 dB
2.7 dB
2.4 dB
2.6 dB
Cable Loss LMR195 15 ft. 1.8
1.9
2.8
2.9
3.0
3.3
Efficiency >70%
>65%
VSWR <2:1
<2:1
Polarization Vertical
Half-Power Azimuth Beamwidth 360°
Half-Power Elevation Beamwidth 70°
78°
60°
70°
80°
33
Impedance 50 Ohm
Max Power 10 W
Connector SMA-Male
Feed Cable Length 16 ft / 4.8 m
Dimensions 7.422 x 2.688 inch / 188 x 68 mm
Packaged Dimensions 8.28 x 20.27 x 3.93 inch / 210 x 515 x 100 mm
Packaged Weight 3.61 lb / 1.6 kg
Wind Loading Area .246 ft^2 / .0229 m^2
Rated Wind Velocity 311 mph / 500 km/h
Radiator Material Aluminum
Radome Material Alumin Plastic Type: ASA (Acrylonitrile Styrene Acrylate)
PDFs Technical Specifications Sheets
