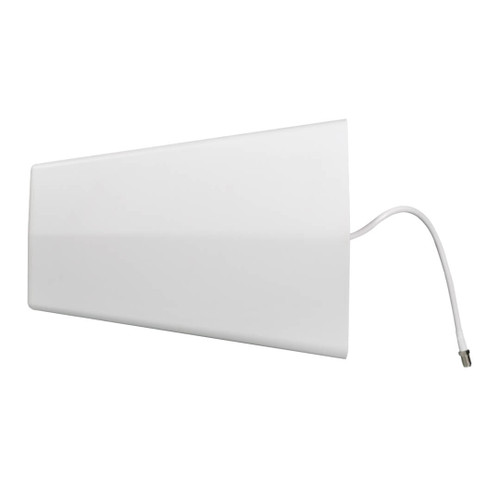

weBoost Wideband Directional Yagi Antenna 75 Ohm - 314445

$99.99

Price Match

See a lower price elsewhere?
call us for price matching!* Learn more.

Q&A

Compatible with all global cellular bands, including LTE, CDMA, GSM, UMTS, and AWS.
High-performance design for weBoost boosters, optimized for exterior installation and direct tower alignment.
Durable, weatherproof, and UV-stable with a compact, high-efficiency build.
Easy installation with a tilt/swivel bracket, fitting 1.0” to 3” diameter pipes or masts.

Current Stock:

Have product questions?
Call our experts for a FREE consultation

1-800-568-2723

USA-based
customer support

Up to 90 day
money-back guarantee

Up to 2 year
product warranty

Product Details

This high-performance outdoor antenna works on all major cellular bands worldwide, including LTE, CDMA, GSM, UMTS, and AWS. Designed for use with weBoost boosters, it’s built for exterior installation and should be aimed at the nearest cell tower for optimal signal. Its compact, high-efficiency design features a UV-stable, weatherproof radome for reliable all-weather use. The included tilt/swivel bracket makes installation easy on pipes or masts from 1" to 3" in diameter.

Technical Specifications

SKU	314445
Frequency / Peak Gain	698-806 MHz / 7.2 dB 806-960 MHz / 6.9 dB 1710-1880 MHz / 8.9 dB 1900-2200 MHz / 8.4 dB 2200-2700 MHz / 9.2 dB
Efficiency	93.0% 84.5% 82.8% 80.1% 82.6%
VSWR	<1.5:1 <1.5:1
Polarization	Vertical
Half-Power Azimuth Beamwidth	118° 121° 101° 103° 79°
Half-Power Elevation Beamwidth	68° 71° 65° 62° 54°
Front-to-Back Ratio	>12 dB >15 dB >12 dB >12 dB
Impedance	75 Ohm
Maximum Power	50 W
Connector	F- Female
Dimensions	11.375 x 8.5 x 2.625 inch / 288.9 x 215.9 x 66.6 mm
Shipping Dimensions	14.25 x 9.125 x 4.0 inch / 361.9 x 231.7 x 101.6 mm
Antenna Weight	1.37 lb / .62 kg
Packing Weight	2.05 lb / .92 kg
Wind Loading Area	0.54 ft2 / 0.05 m2
Radiator Material	Aluminum
Radome Material	Plastic-ChiMei PC385
Documentation	weBoost Wideband Yagi Antenna 50 Ohm Spec Sheet
