Correct installation of commercial-grade cellular signal amplifiers requires a trained system design expert to design and lay out your plan and an installation professional to ensure you get the best coverage and comply with all local and federal regulations.
No more annoying dropped calls, poor call quality & slow Internet!
The Wilson Pro 70 Plus (75 Ohm) from Wilson Electronics is the most popular commercial cell phone signal booster in USA & Canada. It features a graphical uplink & downlink meter and self-optimizing design for easy install & maintenance.
With up to +70 dB gain of power, it greatly enhances 3G & 4G LTE cell service for all your wireless cellular devices (smartphones, tablets, notebooks, hotspots, etc.) on any carrier in North America.
All refurbished units have been manufacturer recertified: properly tested, complete kits, and in like-new condition. In many cases, these are open-box and/or clearance items. Backed by our 30-Day Money Back Guarantee & 1 Year Manufacturer’s Warranty.
Same great performance at a deep discount.
Goodbye, no-signal frustrations.
For people needing coverage for a commercial building up to 25,000 sq ft.
Best for: large multi-story buildings, industrial warehouses, schools, hospitals, hotels, underground parking areas, and other large office spaces.
The Wilson Pro 70 Plus typically covers 5,000 to 25,000 sq ft base on our customer response and install team.
It’s capable of covering 15,000 to 25,000 sq ft depending on strong outside signal and little interference from inside the building.
The three main causes of poor cellular reception in a building are cell tower distance, outside interference, and building material. It is especially true of building material in city & urban areas and of cell tower distance in rural areas.
Many legacy buildings are built with high-density materials such as thick concrete, brick, and metal which block cell signals. Many modern buildings use energy-efficient materials such as radiant barrier and low-energy glass that disrupt signals.
Any combination of these obstructions interrupt cellular service inside the building.
This is why a Wilson Pro commercial cell phone signal booster solves all three problems by reaching farther in the distance to and from the cell tower, bypassing any building material interference, and amplifying the signal inside.
Consistent delivery. Consistent service. 24 hours a day.
For majority of buildings, the Wilson Pro 70 Plus is the most popular choice for better 3G & 4G LTE coverage & convenience.
Note:Does not support Sprint LTE Plus (formerly known as Spark), 2.5 Ghz spectrum. Other Sprint 3G & 4G LTE bands are supported.

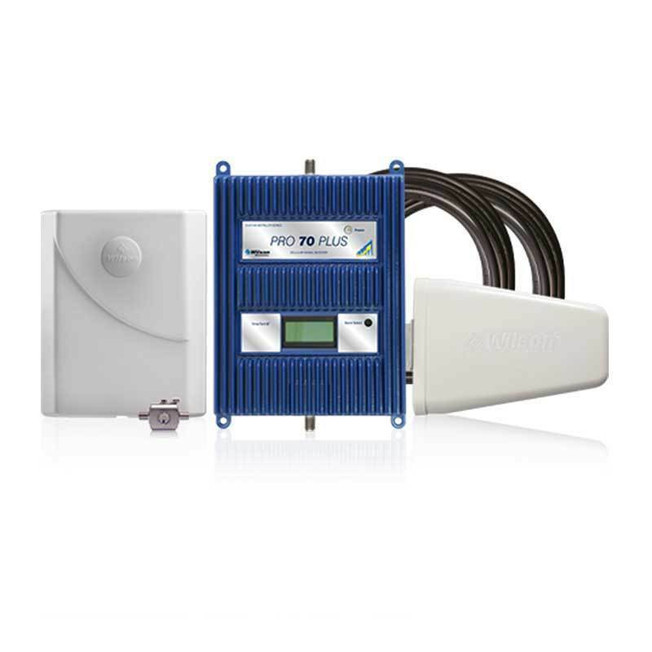

The Wilson Pro 70 Plus (50 Ohm) is a an easy-install 3 part system:
Each kit comes with everything you need for a complete installation.
Your outside signal strength, especially the roof or fascia where you install the outside antenna, has a large impact on the amount of coverage area you get from a signal booster. It is important to know that there many unique factors that go into determining coverage area, so actual results may vary from these estimates.
To learn more about accurately reading getting your outside signal strength, please see our guide on Finding your true cellular signal: It’s all about dB.
|If you current outside signal is:||ESTIMATED boosted indoor signal:|
|Current outside signal:||You may get:|
|5 Bars (-40 to -70 dB)||up to 25,000 sq. ft.|
|4-5 Bars (-70 to - 80 dB)||up to 20,000 sq. ft.|
|3-4 Bars (-85 to -95 dB)||up to 15,000 sq. ft.|
|2-3 Bars (-95 to -105 dB)||up to 10,000 sq. ft.|
|1-2 Bars (-105 to - 115 dB)||up to 5,000 sq. ft.|
|No Signal (-120 dB)||Most likely no signal to boost.|
The Wilson Pro 70 Plus cellular signal booster is a simple, effective solution to maintain continuous communication for all cellular-enabled devices – smartphones, tablets, etc - in your home or workspace.
|FREQUENCY||698-746 MHz; 746-787 MHz; |
824-894 MHz; 1850-1995MHz;
|MAX GAIN||70 decibels (dB)|
|POWER||110-240 V AC, 50-60 Hz, 20 W|
|DIMENSIONS||8.875 x 6.0 x 1.5 in / 22.5 x 15.2 x 3.8 cm|
|WEIGHT||2.81 lbs / 1.27 kg (amplifier only)|
|INTEGRATED POWER METER||Yes|
|FCC Notice||This is a CONSUMER device. |
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by FCC or a licensed wireless service provider.
Part 1 of 6:
Where to Install Your Booster.
Part 2 of 6:
Installing the Outside Antenna.
Part 3 of 6:
Running Cable into Your Home.
Part 4 of 6:
Installing the Inside Antenna.
Part 5 of 6:
Installing the Booster.
Part 6 of 6:
Troubleshooting & Checking Your Signal.
The product is easy to install. Everything is included in the kit.
If you have questions or require assistance, please call our customer and tech support at 1-800-568-2723 or email at sales@WilsonAmplifiers.com. We will be happy to assist you in every step of the way.
WARNING: This product can expose you to chemicals including Nickel (Metallic) which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
