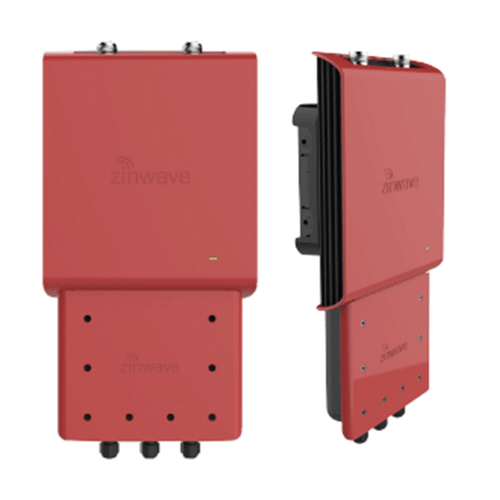

Zinwave Unitivity 5000 Public Safety Remote Unit Red - Front
Zinwave Unitivity 5000 Public Safety Remote Unit Red | 305-0007R

Zinwave Unitivity 5000 Public Safety Remote Unit Red | 305-0007R

Zinwave Unitivity 5000 Public Safety Remote Unit Red - Front
  • Converts and Amplifies Uplink and Downlink Signals.
  • Public Safety and LTE Band Support, 150-2700 MHz
  • Up to 23 dBm Output
  • NEMA4 Compliant Hardware
  • Two N-Female Antenna Connectors
This is a commercial-grade product needing EXPERT ADVICE from professionals
Phone
Or call our experts directly Mon-Friday 8AM-5PM CST.
1-800-887-1961

We Offer System Design & Turnkey Installation Services

Installing a commercial-grade cell signal booster system requires a professional's touch. Our team of signal experts will make sure you get coverage where you need it. We have improved indoor cellular coverage in millions of square feet for some of the largest companies in the world.

Phone Number Support
Let's talk now:1-800-887-1961

Product Details

The Zinwave Unitivity 5000 Primary Hub receives RF signals from the RF source and converts them to optical. It can handle frequencies from 150 MHz to 2.7 GHz.

The Zinwave Unitivity 5000 Public Safety Remote Unit is designed to convert and amplify incoming and outgoing signals. It connects to the Primary or Secondary Hub and is typically mounted above ceiling tiles or out-of-sight locations in any orientation. The two N-Female connectors allow the integration of two antennas.

Public Safety Remote Unit supports all frequencies from 150-2700 MHz, including VHF, UHF, FirstNet Band 14, and all TETRA bands in any combination. With up to 23 dBm downlink power, a single Public Safety RU offers incredible coverage for dependable two-way communication.

Enclosure is NEMA4 rated. To make it IP66 rated, the Public Safety Splice Tray (sold separately) must be attached. Featuring three cable entry points, the tray allows maximum flexibility across various fiber, power, and alarm configurations. NFPA-compliant alarming connections are included.

Technical Specifications

Unit Specifications
POWER CONNECTIVITY 48 V DC POWER INPUT VIA PHOENIX 5.08 mm 2-WAY CONNECTOR; AWG 12-24
FIBER CONNECTIVITY SC/APC DUPLEX
ANTENNA CONNECTIVITY SIMPLEX N-FEMALE CONNECTORS (TX AND RX)
TRAY CONNECTIVITY 3 GLANDS WITH M16, M32, M20 SCREW THREADS (LEFT TO RIGHT FROM FRONT), BLANK PLATES/GLANDS PROVIDED, CABLE DIAMETERS RANGING BETWEEN 2 mm AND 21 mm CAN BE SUPPORTED WITH SUPPLIED GLANDS
OTHER CONNECTIVITY ALARM RELAY: PHOENIX 5.08 mm 3-WAY WITH NORMALLY CLOSED AND NORMALLY OPEN CONNECTIONS
DIMENSIONS W / D / H (mm) 8.1" (206) x 16.3" (415) x 2.2" (55) MEASUREMENTS INCLUDE SUPPLIED MOUNTING BRACKET AND IP66 ENCLOSURE
WEIGHT 6.6 LBS (3 Kg)
ELECTRICAL DEPENDING ON CONFIGURATION 48 V DC / 0.5 A / 24 W (82 BTU/HR) MINIMUM INPUT VOLTAGE IS 37 V
OPERATING TEMP AMBIENT NON-CONDENSING -5 TO +50 °C (23 TO 122 °F)
Approvals & Listings
EUROPE CE MARKED FOR RADIO EQUIPMENT DIRECTIVE 2014/53/EU AND ROHS DIRECTIVES 2011/65/EC
USA FCC FCC CERTIFIED
CANADA INDUSTRY CANADA CERTIFIED
SAFETY IEC 60950-1; EN 60950-1; UL60950-1, UL LISTED-E486578
LASER SAFETY IEC 60825-1:2007
UPC 810005964463
